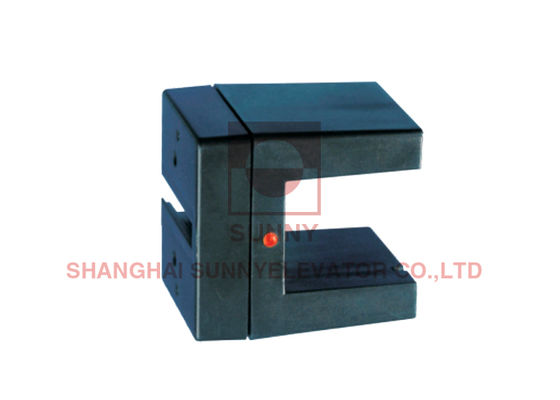

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

प्रमाणन
चीन SHANGHAI SUNNY ELEVATOR CO.,LTD प्रमाणपत्र
चीन SHANGHAI SUNNY ELEVATOR CO.,LTD प्रमाणपत्र
नए साल के आगमन के साथ, मैं कंपनी ने अपने पैमाने का विस्तार होगा, अपने व्यवसाय को विकसित करने, अपने व्यापार को विकसित करने और अपने वित्तीय संसाधनों का विस्तार चाहते हैं।

—— Melya

उत्पाद की गुणवत्ता प्रबंधन पर जोर देना, गुणवत्ता का दीर्घकालिक प्रभावी तंत्र का निर्माण।

—— Yuilly

मैं अब ऑनलाइन चैट कर रहा हूँ

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

बड़ी छवि :  CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: SUNNY
प्रमाणन: CE,ISO9001
मॉडल संख्या: Et126ns2p
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 10pcs
मूल्य: $7~10
पैकेजिंग विवरण: मानक निर्यात पैकेज
प्रसव के समय: 7 ~ 15 दिन
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता: 1000 पीसी / माह
विस्तृत उत्पाद विवरण
नाम: लिफ्ट लेवलिंग स्लॉट सेंसर उपयुक्त: लिफ्ट उपकरण
व्यवसाय का प्रकार: निर्माता परिवहन: समुद्री यातायात
प्रोडक्ट का नाम: लिफ्ट के पुर्जे वोल्टेज: 10...30वीडीसी
नमूना: लिफ्ट लेवलिंग स्लॉट सेंसर उत्पाद: लिफ्ट लेवलिंग स्लॉट सेंसर
उत्पादन: पीएनपी या एनपीएन तापमान सीमा: -20 ~+70 ° ℃

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts



Feature Description

High-speed response type

With a repeatability accuracy of up to 0.5mm, the positioning is more precise

Infrared light above 10000% is on standby, dust-proof, smoke-proof and steam-proof

It is equipped with built-in output short-circuit protection, surge protection and overload protection circuits

Multi-functional output (NPN/PNP/NO/NC

Protection grade IP65(IEC)



Model ET126NS2P
Power supply 10...30VDC
Riple <10%
Detected object Φ2.0 Above metal objects
Sensitivity adjustment fixed
Emission Infrared(880nm)
Output PNP or NPN
Max. Load Current ≤200mA
No Load Current 15mA or Less
Voltage Drop(Sensor On) <2.5V
Response Time ≤1ms
Short Circuit Protection Yes
Electric Protections Yes
Temperature Limits -20 ~+70°℃
Storage temperature and humidity -40 ~ +80℃ 95% RH
Light Immunity >100,000Lux
Protection Degree En60529 IP65
EMC EN 12015, EN 12016
Certification CE
Connection Type PVC Cable









CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 0



CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 1



CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 2

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
